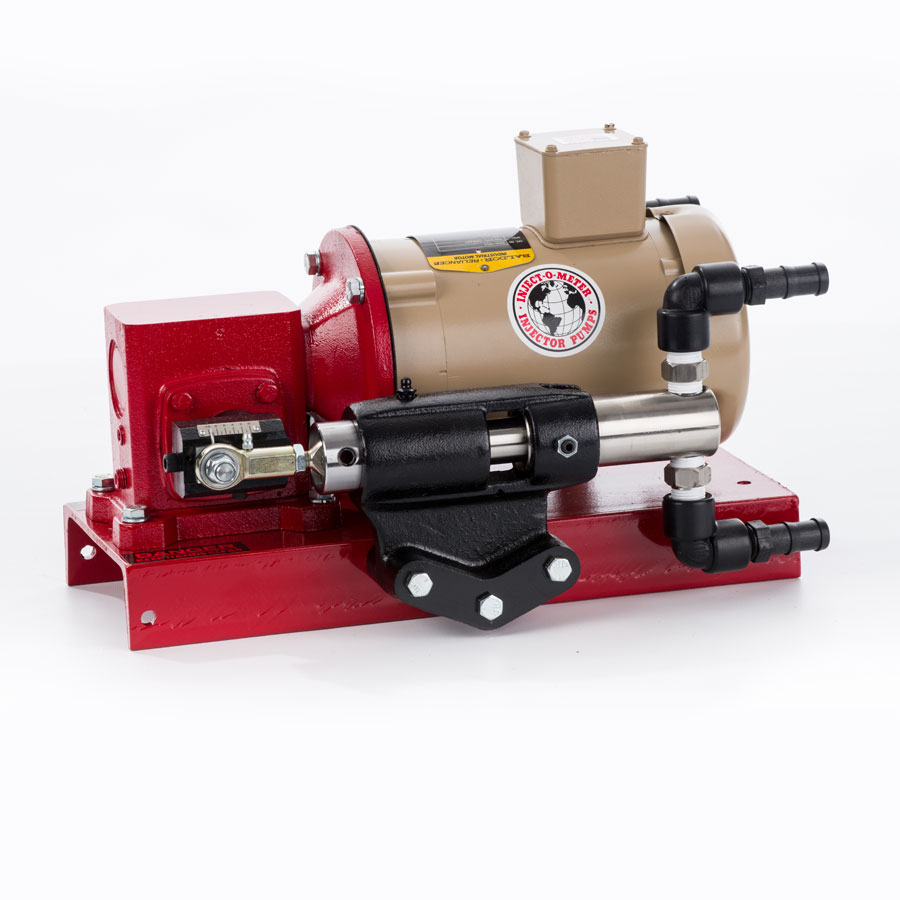

All Inject-O-Meter electric driven pumps are available in Single Phase, Three Phase, 12 Volt and Variable Speed Drive motors. The electric driven unit is our most popular style and is used in various industries.
WEIGHT
70 to 80 lbs. simplex depending on configuration
90 to 100 lbs. duplex depending on configuration
BENEFITS
- Built rugged for years of trouble free service
- High range of operating pressures (150 psi)
- Small in size
- Grease ports to extend life of pump
FEATURES
- All wetted parts made of 316 Stainless Steel (Other materials available, please see the corrosive chemical section in the catalog for details)
- Gear reducer: heavy duty, double shafted (15:1 standard), call for other speeds
- O-rings: Viton®, EPR, Aegis, and Kalrez® for all of your chemical handling needs
- Vee-packing: N-buna, Viton®, Teflon® and special packing with a mixture of 2 styles
- Valves: 316 stainless steel (Kynar®, Polypropylene are available as well)
- Ball Checks: 316 stainless steel (Ceramic and Teflon® are available as well)
- Springs: 316 stainless steel (Hastelloy C available on certain models)
Outputs (gallons per hour) by Model @ 1725 RPM
| Model | Min Output Simplex | Max Output Simplex | Min Output Duplex | Max Output Duplex |
|---|---|---|---|---|
| I-70 – .25 | .2 | 2.0 | .2 | 4 |
| I-70 – .375 | .45 | 4.5 | .45 | 9 |
| I-70 – .50 | .8 | 8 | .8 | 16 |
| I-70 – .675 | 1.25 | 12.5 | 1.25 | 25 |
| I-70 – .75 | 1.8 | 18 | 1.8 | 36 |
| HVI – 88 | 3 | 30 | 3 | 60 |
| HVI – 82 | 5.7 | 57 | 5.7 | 114 |
| IOM – 96 | 10 | 100 | 10 | 200 |
