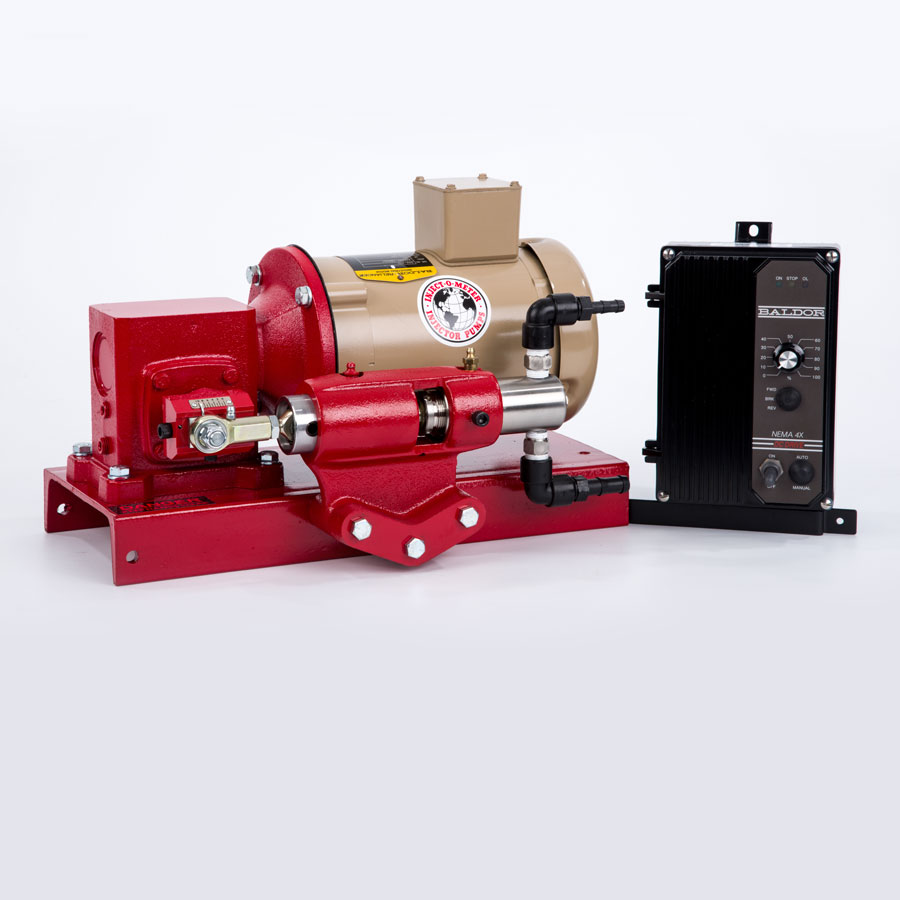

Variable Speed Drive Proportional Pumps
This unit allows the user to change the output of the pump without having to stop and manually adjust the stroke length of the piston. The waterproof controller is NEMA 4x that comes standard with start / stop and speed dial to vary the output of the pump. Input Voltages of 110/220 Volt in Single phase and 230/460 Volt in Three phase. With optional signal isolator board; pump output can be set proportional to water flow.
BENEFITS
- Can follow several input signals including 4/20 mA
- NEMA 4X box
- DC motor handles slow RPM rate without motor failure
- Compatible with 3 Phase power by adding transformer
- High range of operating pressures (150 psi)
FEATURES
- All wetted parts made of 316 Stainless Steel (other materials available please see the corrosive chemical section in the catalog for details)
- Gear reducer: heavy duty, double shafted (15:1 standard), call for other speeds
- O-rings: Viton®, EPR, Aegis, and Kalrez® for all of your chemical handling needs
- Vee-packing: N-buna, Viton®, Teflon® and special packing with a mixture of 2 styles
- Valves: 316 stainless steel (Kynar®, Polypropylene are available as well)
- Ball Checks: 316 stainless steel (Ceramic and Teflon® are available as well)
- Springs: 316 stainless steel (Hastelloy C available on certain models)
Outputs (gallons per hour) by Model
| Model | Min Output Simplex | Max Output Simplex | Min Output Duplex | Max Output Duplex |
|---|
| I-70 – .25 | .2 | 2 | .2 | 4 |
| I-70 – .375 | .45 | 4.5 | .45 | 9 |
| I-70 – .50 | .8 | 8 | .8 | 16 |
| I-70 – .675 | 1.25 | 12.5 | 1.25 | 25 |
| I-70 – .75 | 1.8 | 18 | 1.8 | 36 |
| HVI – 88 | 3 | 30 | 3 | 60 |
| HVI – 82 | 5.7 | 57 | 5.7 | 114 |
| IOM – 96 | 10 | 100 | 10 | 200 |
